NEWPORT 优铂特 937B-US-NANANA-NA 937B Digital Combination Vacuum Gauge Controller
Base Vacuum Gauge Controller, RS232 and RS485, Series 937B, US Region
概览

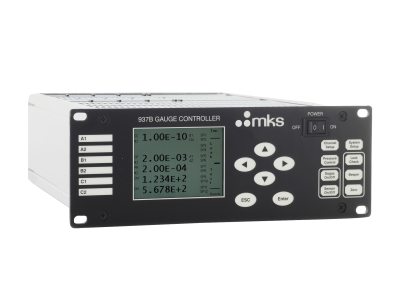

The 937B-US-NANANA-NA Digital Combination Vacuum Gauge Controller is used in a vast array of vacuum and pressure measurement applications in research, industry, and high technology and is designed for the US region. The 937B will operate and display as many as six sensors simultaneously, and each controller can be configured to the user’s gauging requirements. The 937B, enables the use of any sensor card in each of the sensor card slots. The 937B can be configured with up to three hot or cold cathode type gauges, or three dual sensor cards for a maximum of six gauge connections.
Please see 937B Digital Combination Vacuum Gauge Controllers on mksinst.com for additional configurations, literature, and product support.
技术参数
类型
Vaccum System Controller
显示
320 x 240 color QVGA TFT LCD with back lighting. Up to 6 pressure displays. Display indicators for unit of measure, calibration functions, user calibration, set points, gauge position indicators.
真空压力范围
1.0 x 10-11 - 20,000 Torr, 1.0 x 10-11 - 2.7 x 10+4 mbar, 1.0 x 10-9 - 2.7 x 10+6 Pascal, 1.0 x 10-8 - 2.0 x 10+7 microns
模拟输出
Buffered, log linear & linear output for each channel & channel combinations
通信类型
RS232 and RS485
设定值继电器
12
继电器触点额定值
2 Amps @ 30 VAC
工作温度范围
5 - 40° C (41 - 104°F)
存储温度范围
-10 - 55°C (14 - 131°F)
CE 认证
Yes
