NEWPORT   优铂特    819-IG-1.5-800PS   1.5英寸高速响应多功能积分球

品牌: NEWPORT优铂特
型号: 819-IG-1.5-800PS
产品详情

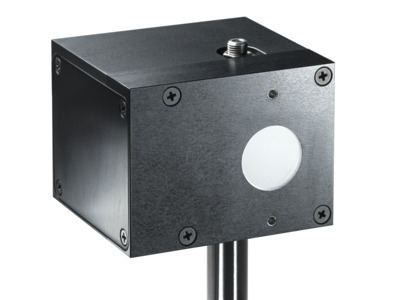

NEWPORT   优铂特    819-IG-1.5-800PS   1.5英寸高速响应多功能积分球


Multifunctional Integrating Sphere, 2 Detectors, 1.5 in. ID, 600 nW to 3 W, Ø20 mm, 940 to 1640 nm




The 819-IG-1.5-800PS multifunctional integrating sphere provides multiple measurement capabilities in a single integrating sphere device: a) a precision InGaAs photodiode for calibrated 940-1640 nm average power measurement, b) a fast photodiode for pulse shape characterization on an oscilloscope and a built in SMA fiber adapter, and c) an SMA fiber optic adapter for easy connection to a spectrometer. The 819-IG-1.5-800PS has a small internal diameter of 1.5 inch (38 mm), to minimize the pulse stretching effect inherent to integrating spheres, giving it a time constant of 0.7 ns. Together with its fast silicon photodiode, the 819-IG-1.5-800PS provides a pulse rise time of 0.8 ns and a fall time of 5.0 ns.



参数

  • 类型
    Integrating Sphere
  • 探测器类型
    Photodiode and Fast Photodiode
  • 光纤光学连接器
    SMA
  • 探头的材质
    InGaAs
  • 光谱范围
    940 to 1640 nm
  • 最大测量功率
    3 W
  • 最小测量功率
    600 nW
  • 噪声等效功率
    30 nW
  • 均匀性
    ±2%
  • 上升时间
    0.8 ns
  • 球体尺寸
    1.5 in.
  • 工作温度范围
    +15 to 40 C
  • 工作湿度
    20 to 70% RH noncondensing
  • CE 认证
    Compliant
