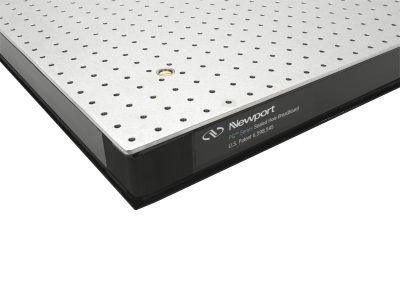

NEWPORT 优铂特 M-PG-25-2-ML 带有模态阻尼和Microlocks的PG 4.8mm表层蜂窝光学面包板
光学面包板,模态阻尼,Microlock,600 x 1500 x 59 mm,M6
M-PG-25-2-ML精密级模态阻尼蜂窝芯光学面包板的宽度为600 mm,长度为1500 mm,厚59 mm,在中心距25 mm的网格上分布着M6-1.0的孔。它具有Newport设计的微锁,允许用户以最刚性的方式将面包板用螺栓固定到另一种结构上。PG系列提供坚如磐石的稳定性和刚性,以支持苛刻的研究应用。 在超过600 mm²的面积上, 它显示出±0.1 mm的出色平面度。PG面包板还提供了4.8 mm的铁磁钢安装表面,已获专利的模态阻尼,密封孔,钢蜂窝芯和自阻尼侧板。
参数
宽带阻尼
Patented modal damping, constrained layer core, damped working surface and composite edge finish
宽度
600 mm
长度
1500 mm
厚度
59 mm
工作表面
4.8 mm thick 400 Series ferromagnetic stainless steel
表面平面度
±0.1 mm over 600 mm square
底部表皮材料
3.4 mm thick carbon steel
微锁定
Yes
微型锁数量
5
安装孔
M6
安装孔类型
Cut (not rolled) threads with countersink
安装孔模式
25 mm grid
安装孔边距
12.5 mm borders
密封孔类型
Easy clean non-corrosive high impact polymer conical cup, 19 mm deep
纤芯设计
Trussed honeycomb, vertically bonded closed cell construction, 0.25 mm Steel sheet materials, 0.76 mm triple core interface
重量
82.3 kg
