HAMAMATSU 滨松 EQ-99X-FC-S 激光驱动光源 (LDLS)
EQ-99X-FC-S 是一款光纤耦合 LDLS。可提供两种类型的光纤，以选择符合用途需求的波长范围。EQ-99X-FC-S 采用紧凑型灯头结构，发热更小，非常适合在狭小空间内进行实验或在设备中安装。灯头设计为通过自然对流制冷，从而消除了制冷风扇引起的振动，并确保高度稳定的光输出。
特点
Extremely broad wavelength range：170 nm to 2500 nm
Fiber can be selected from 2 types（UV type：190 nm to 900 mn、Broadband type：350 nm to 2500 nm）
Long lifetime：10 000 hours
High radiance from a small plasma

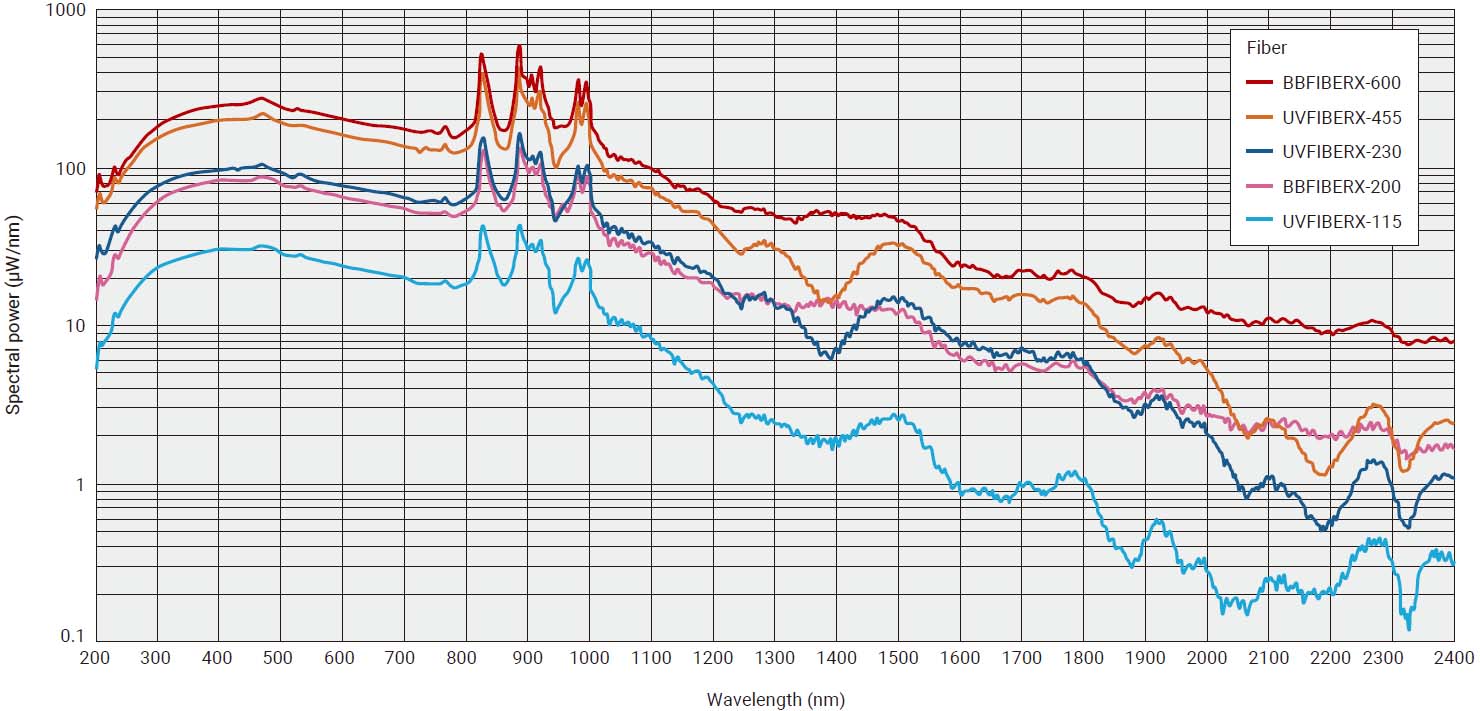

光谱功率
详细参数
| Parameter | Description / Value | Unit |
|---|
| Optical interface | Fiber coupled output | － |
| Wavelength range*1 | 190 to 2500 | nm |
| Plasma size (FWHM) | Typ. | 100 × 180 | μm |
| Numerical aperture | NA | 0.22 | － |
| Lifetime | Typ. | 10 000 | h |
| Warm-up time | 30 | min |
| Laser class | Class 1 | － |
| Broadband optical power*2 | 95 | mW |
| Output termination | FC or SMA 905 | mm |
| Cooling method | No auxiliary cooling required | － |
| Nitrogen purge | Recommended. Grade 4.8 or higher, filtered to 5 μm. 20 psiG ±2 psiG | － |
| Applicable standards | EN 61010-1
EN 61326-1
IEC 60825-1
IEC 62471
EN 50581 | － |
| Device configuration*3 | Lamphead, Power supply controller, Remote control, AC adapter, Necessary cables | － |
| Power rating | Input voltage (AC) | 100 to 240 | V |
| Power frequency | 50 / 60 | Hz |
| Power consumption | 175 | W |
*1 The optical fiber should be selected according to wavelength range required for the application.
*2 Optical power from the optical fiber (UVFIBERX-230) was measured with a thermopile.
*3 The configuration is different for sales to Japan. Please contact us for details.
Fiber specifications
Optical fibers can be selected with the following core diameters, lengths and connector terminations.
| Parameter | UV type | Broadband type | Unit |
|---|
| Type | UV FIBERX | BB FIBERX | － |
| Recommended wavelength range | 190 to 900 | 350 to 2500*4 | nm |
| Broadband optical power | 30 | 95 | 195 | 25 | 80 | 180 | 215 | mW |
| Core size | 115 | 230 | 455 | 100 | 200 | 400 | 600 | μm |
| Length | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 | m |
| Termination | FC-FC or FC-SMA | － |
※ The model number of each optical fiber is determined by fiber type, core diameter, length and connector termination.
Example: UVFIBERX-230-1M-FC-SMA (UV type, fiber core diameter: 230 μm, length: 1 m, connector: FC-SMA)
* The EQ-99X-FC must use the above dedicated optical fibers.
Attempting to use any other optical fibers will cause optical fiber connector problems, damage to the lamphead and will affect performance.
*4 Although light at wavelengths shorter than 350 nm also passes through the broadband type optical fiber, the fiber transmittance within that wavelength range will drop within a short time. For applications that require UV output, we strongly recommend selecting the UV type optical fiber as they are optimized for that wavelength range.

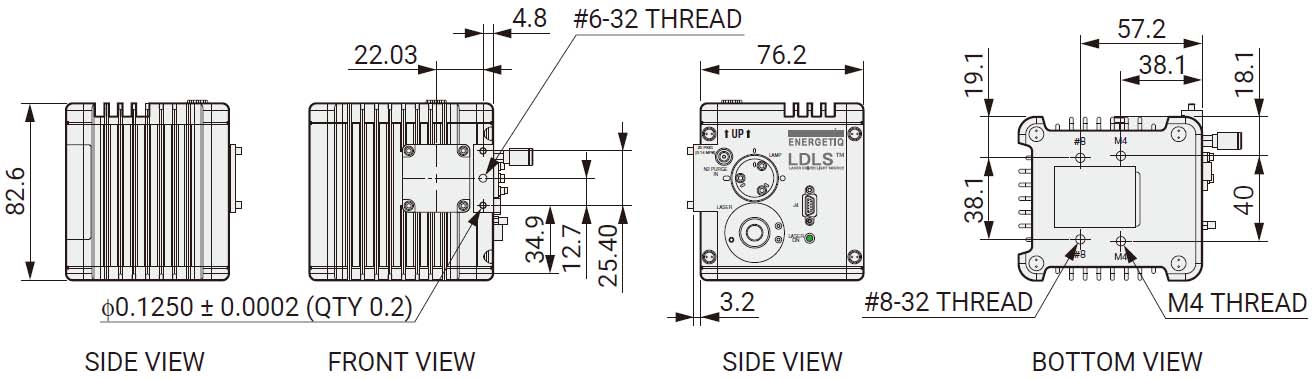

外形尺寸图（单位：mm）
