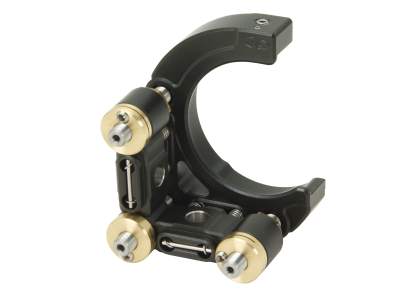

NEWPORT 优铂特 SX200-F3H-127 Suprema ®高分辨率-低CTE反射镜调整架
Suprema XTE 无边缘反射镜调整架,2.0 英寸,(3) 127-TPI 内六角锁定螺丝钉
概览
The new Suprema® XTE is the highest performing mount in the Suprema family owing to new actuators, materials, and configuration. 127-TPI adjustment screws provide a 20% sensitivity advantage over the standard adjusters while the new stainless steel alloy gives a 38% lower Coefficient of Thermal Expansion (CTE). The Suprema XTE also has an optically black finish to reduce stray light reflections. SX200 mounts have superior adjustability and feel. Polished and lapped carbide pads enable smooth, repeatable motion. This three hex-key actuator configuration has tip and tilt adjustability over a range of +/- 7 degrees as well as translation. Convenient 8-32 (M4) counterbored clearance holes provide quick, precise, secure and stable mounting. Suprema mounts are compatible with standard post and post holder systems for adjustable height and pedestal posts for a stable fixed height.
技术参数
机制
Kinematic
光学元件直径
50.8 mm
致动器数量
3
调节螺纹
127 TPI
调节
z, θx, θy
灵敏度
3.0 arc sec
角度范围
±7°
材料
Stainless Steel
驱动方式
Allen-Key, locking
螺纹类型
8-32 (M4) CLR
特征
Low Drift
