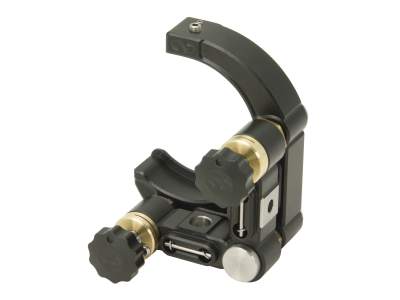

NEWPORT 优铂特 SX200-R2KN-LH Suprema ®高分辨率-低CTE反射镜调整架
Suprema XTE 左手式反射镜调整架,2.0 英寸,(2) 254-TPI 六角
概览
The SX200-R2KN-LH is a left-handed, rear-loading, stainless steel mount for 2-in (50.8-mm) diameter optics. It is sold with two non-locking 254-TPI adjustment screws for precision pitch/yaw positioning. 254-TPI adjustment screws provide a 60% sensitivity advantage over the standard adjusters while the new stainless steel alloy gives a 38% lower Coefficient of Thermal Expansion (CTE). The Suprema® XTE also has an optically black finish to reduce stray light reflections. SX200 mounts have superior adjustability and feel. Polished and lapped carbide pads enable smooth, repeatable motion. This two-actuator configuration has tip and tilt adjustability over a range of +/- 7 degrees. Convenient 8-32 (M4) counterbored clearance holes provide quick, precise, secure and stable mounting. SUPREMA mounts are compatible with standard post and post holder systems for adjustable height and pedestal posts for a stable fixed height.
技术参数
机制
Kinematic
光学元件直径
50.8 mm
致动器数量
2
调节螺纹
254 TPI
调节
θx, θy
灵敏度
1.5 arc sec
角度范围
±7°
光学元件装载
Rear
材料
Stainless Steel
驱动方式
Knob, non-locking
螺纹类型
8-32 (M4) CLR
特征
Left-handed
